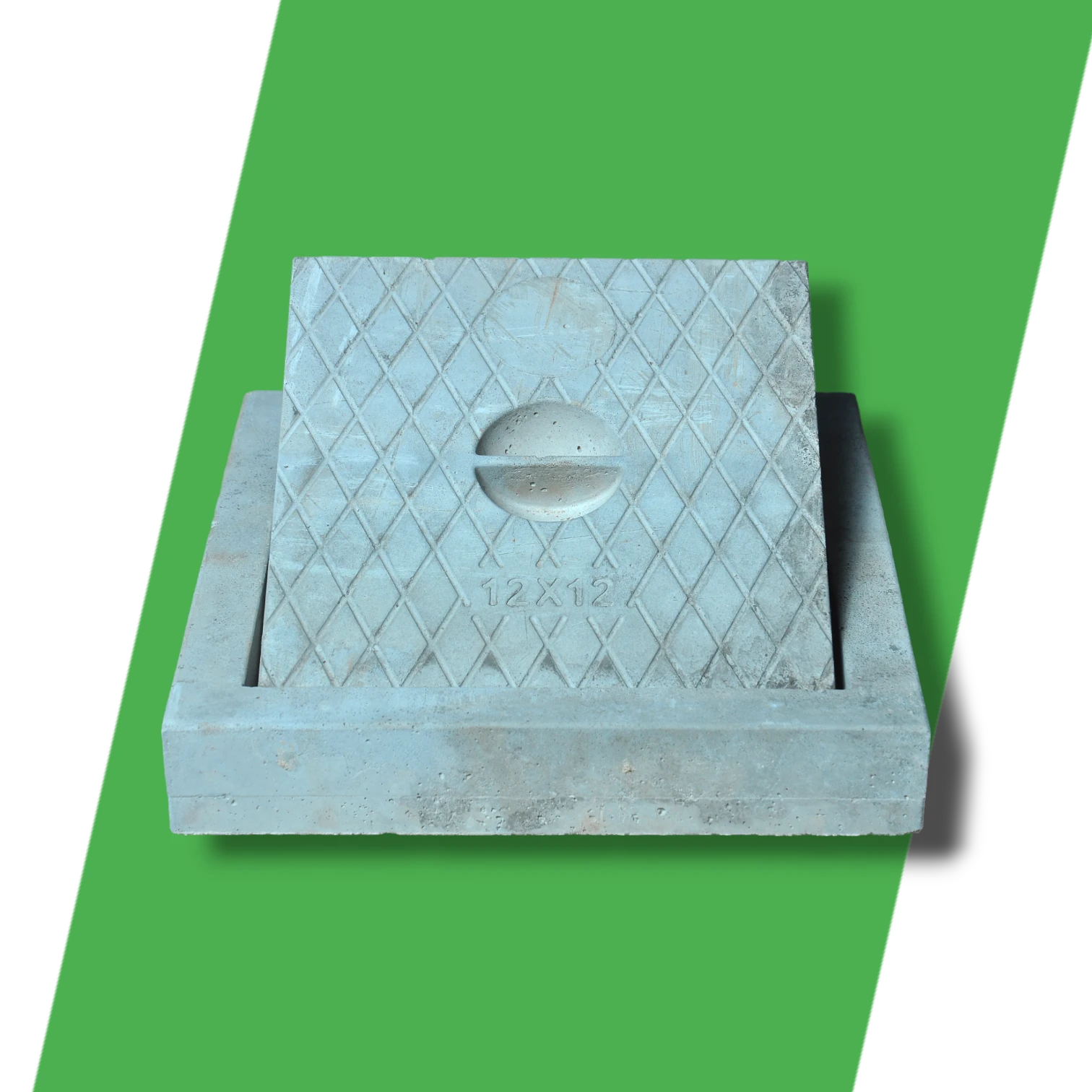

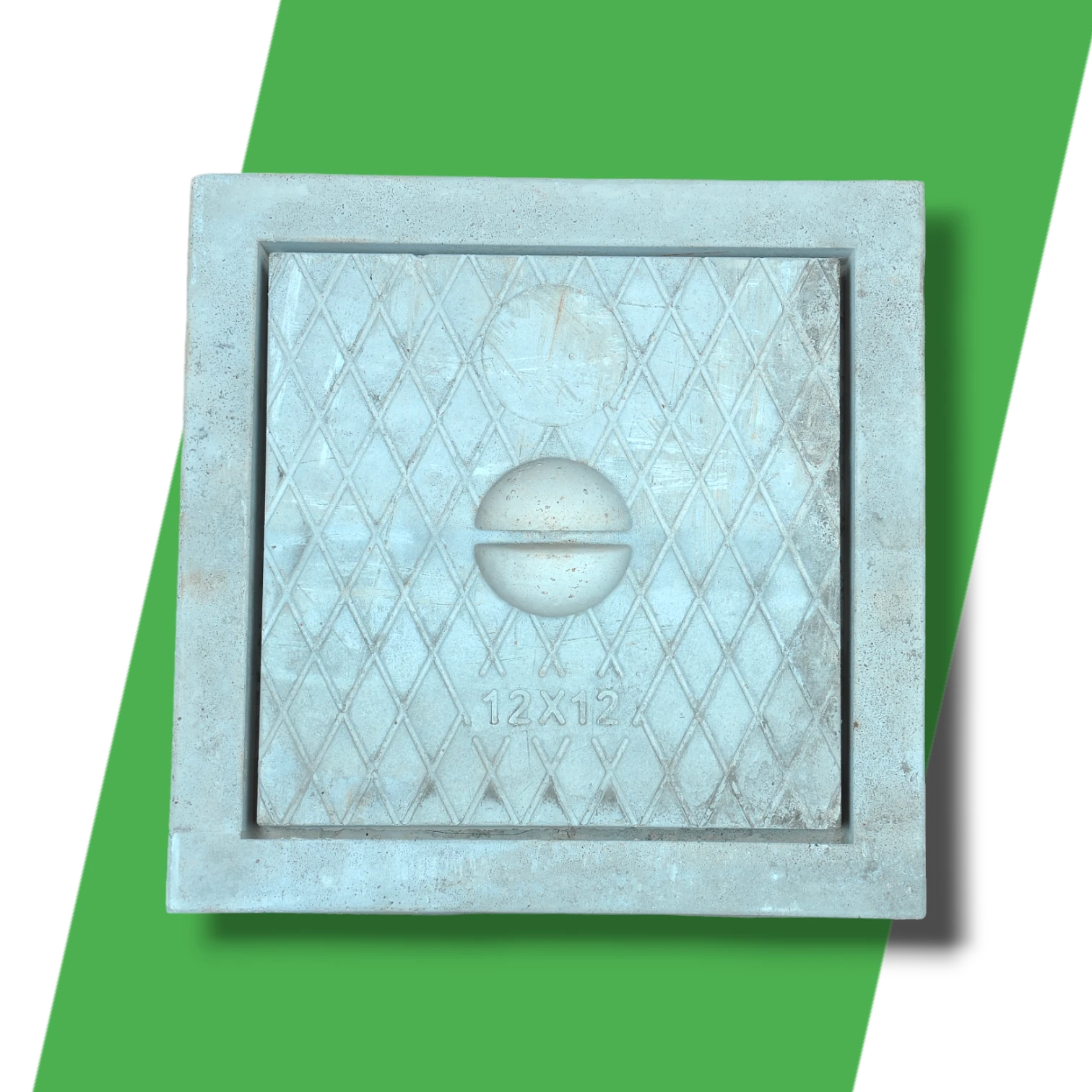

Rcc ManHole Cover 300 x 300 x 50 mm
Product Overview:
RCC Round Manhole Cover Dimensions
Cover Dimensions
| Attribute | Dimensions (mm) | Dimensions (inches) |
|---|---|---|
|
Cover Square (LXW) |
242 x 242 mm |
9.5 x 9.5 inches |
|
Cover Height (H) |
38 mm |
1.5 inches |
|
Cover Weight |
5 KG |
|
|
Load Capacity |
N/A |
|

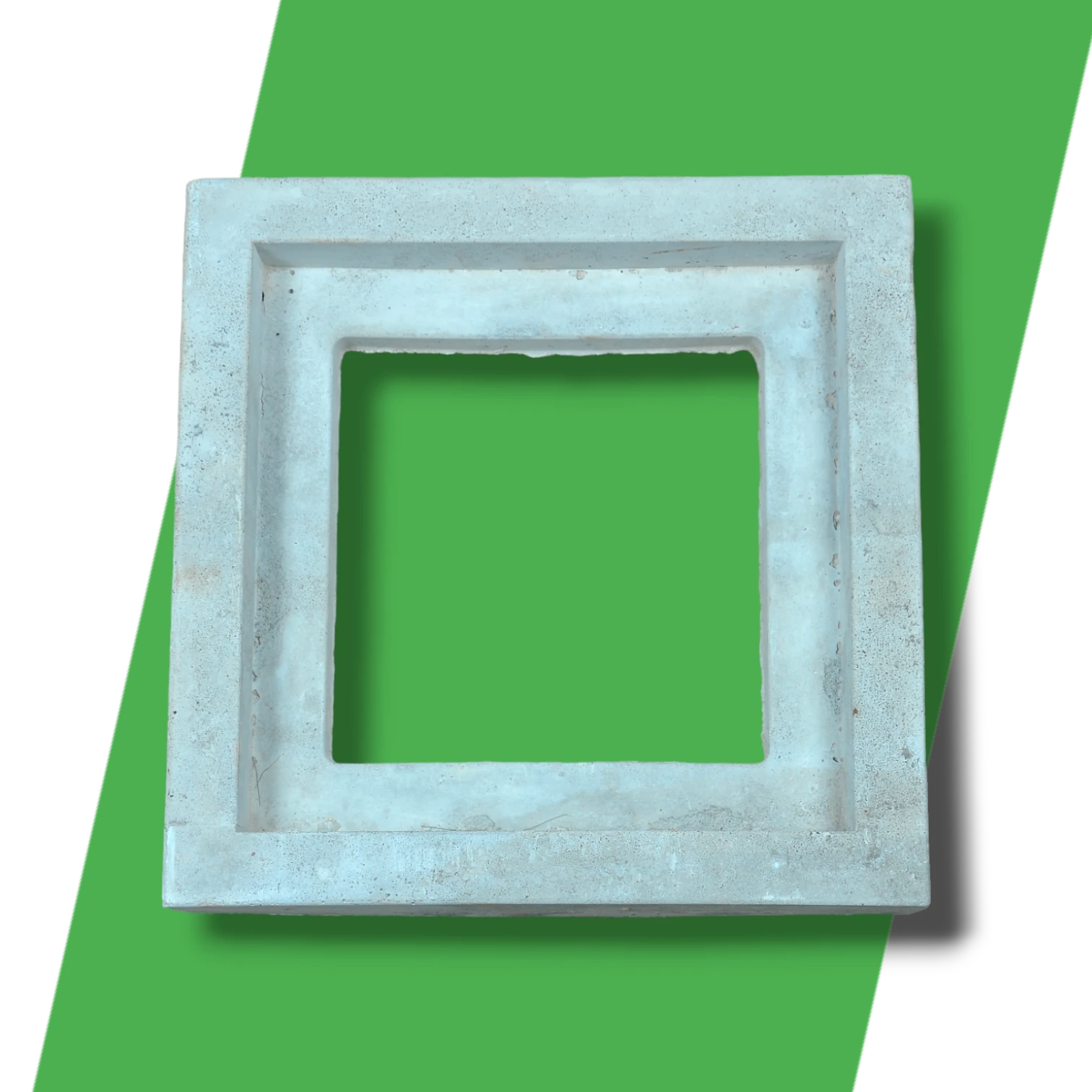

Frame Dimensions
| Attribute | Dimensions (mm) | Dimensions (inches) |
|---|---|---|
|
Frame Square (LxW) |
300 x 300 mm |
12 x 12 inches |
|
Frame Height (h) |
50 mm |
2 inches |
|
Clear Opening (LXW) |
200 x 200 mm |
8 x 8 inches |
|
Frame Weight |
5 KG |
|
Key Features
Compact Size
The 300 x 300 x 50 mm dimensions make this manhole cover suitable for areas with space constraints.
Durable Construction
Crafted from high-strength Reinforced Concrete Cement (RCC) for long-lasting durability and resilience.
Easy Installation
Designed for straightforward installation, ensuring a secure and stable fit.
Versatile Applications
Ideal for use in residential neighborhoods, parks, sidewalks, and other areas requiring access to utility infrastructure.
Corrosion Resistance
The RCC material provides inherent resistance to corrosion and rust, ensuring a low-maintenance solution.
Technical Specifications:
- Cover Dimensions: 300 x 300 x 50 mm
- Material: Reinforced Concrete Cement (RCC)
- Weight: 10 KG
- Load Capacity: N/A
Applications
- Residential Areas
- Walkways and Sidewalks
- Parks and Green Spaces
- Commercial Properties
- Municipal Infrastructure
Installation Guidelines:
- Ensure a level and stable base for the manhole cover.
- Use appropriate tools and equipment for lifting and placement.
- Securely fasten the cover to prevent unauthorized access.
- Regularly inspect and maintain the cover to ensure continued functionality.
Loading Capacity
LD 2.5 Rectangular, Square or Circular Types
Suitable for use within residential and institutional complexes / areas with pedestrian but occasional light motor vehicle traffic these are also used for inspection chambers.
MD-5 Rectangular or Circular Types
Suitable for use in service lanes / road, on pavements for use under medium duty vehicular traffic including for car parking
MD 10 Rectangular or Circular Types
Suitable for use in service lanes / road, on pavements for use under medium duty vehicular traffic including for car parking areas.
HD - 20 Circular, Lamp Hole, Square or Rectangular (Scrapper Manhole) Types
Suitable for use in Institutional/Commercial areas/Carrigeways /City truck road/Bus terminals with heavy duty vehicular traffic Of Wheel load between 50 to 100 KN, like buses, trucks and parking Areas and where the manhole chambers are located in between the Pavement and the middle of the road.
EHD-35 Rectangular, Square or Circular (Scrapper Manhole) Types
Suitable for use on carriage ways in Commercial/Industrial/Port Areas/Near Warehouses/Godowns where frequent loading and unloading of truck/trailers are common, with slow to fast moving vehicular traffic of the types having wheel load up to 115 KN irrespective of the location of the Manhole chambers.
Explore the Future of Infrastructure with Our RCC Manhole Cover
Note: For detailed product specifications and additional information, please consult the manufacturer or supplier directly.
