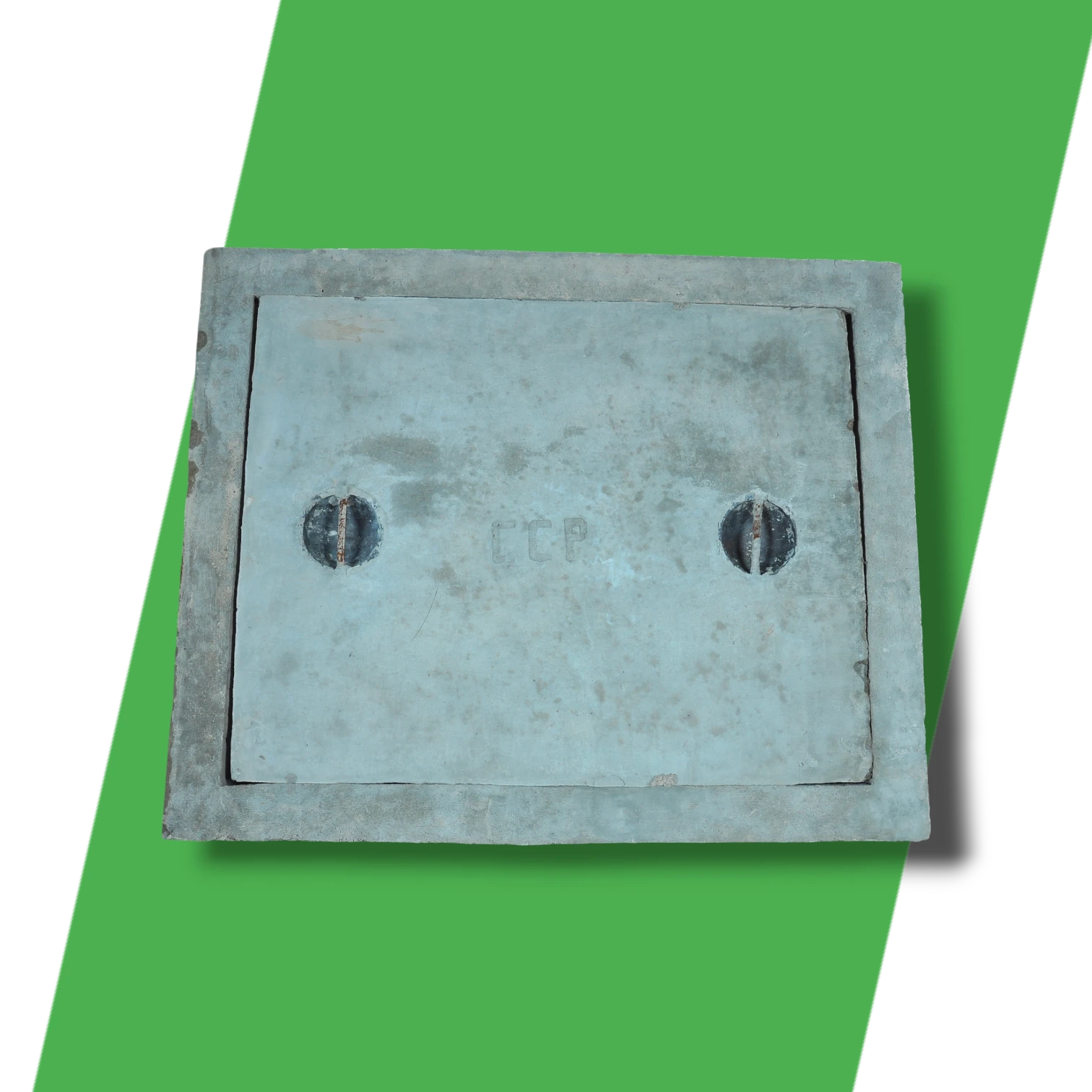

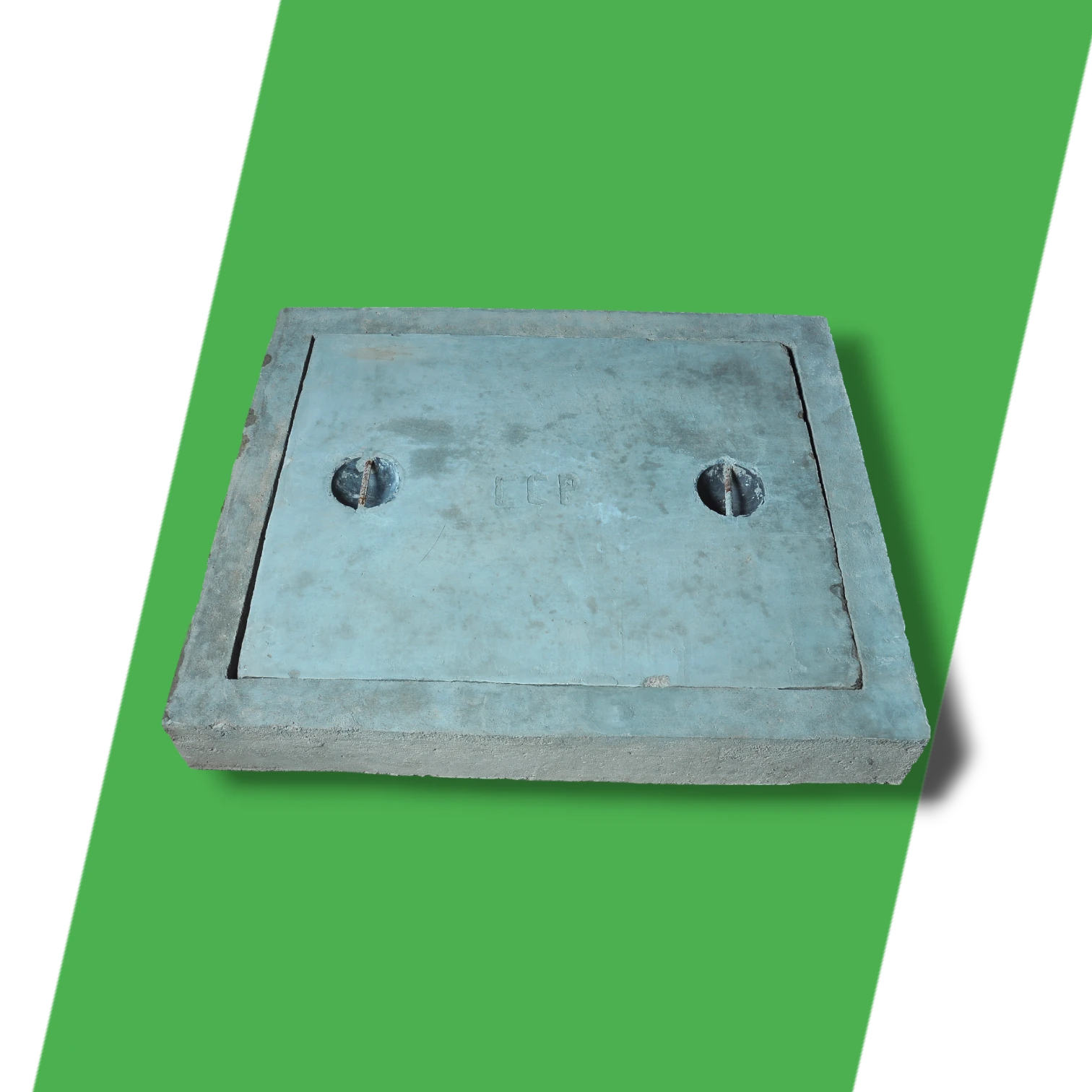

Rcc Rectangular Manhole Cover 812 x 650 x 120 mm
RCC Round Manhole Cover Dimensions
Cover Dimensions
| Attribute | Dimensions (mm) | Dimensions (inches) |
|---|---|---|
|
Cover Rectangle (LxW) |
700 x 520 mm |
20.5 x 27.5 inches |
|
Cover Height (H) |
75 mm |
3 inches |
|
Cover Weight |
53 KG |
|
|
Load Capacity |
HD-20 / MD-10 (Capacity in Ton) |
|
Frame Dimensions
| Attribute | Dimensions (mm) | Dimensions (inches) |
|---|---|---|
|
Frame Rectangle (LxW) |
812 x 650 mm |
32 x 26 inches |
|
Frame Height (h) |
120 mm |
6 inches |
|
Clear Opening (LXW) |
600 x 450 mm |
24 x 18 inches |
|
Frame Weight |
63 KG |
|
Loading Capacity
LD 2.5 Rectangular, Square or Circular Types
Suitable for use within residential and institutional complexes / areas with pedestrian but occasional light motor vehicle traffic these are also used for inspection chambers.
MD-5 Rectangular or Circular Types
Suitable for use in service lanes / road, on pavements for use under medium duty vehicular traffic including for car parking
MD 10 Rectangular or Circular Types
Suitable for use in service lanes / road, on pavements for use under medium duty vehicular traffic including for car parking areas.
HD - 20 Circular, Lamp Hole, Square or Rectangular (Scrapper Manhole) Types
Suitable for use in Institutional/Commercial areas/Carrigeways /City truck road/Bus terminals with heavy duty vehicular traffic Of Wheel load between 50 to 100 KN, like buses, trucks and parking Areas and where the manhole chambers are located in between the Pavement and the middle of the road.
EHD-35 Rectangular, Square or Circular (Scrapper Manhole) Types
Suitable for use on carriage ways in Commercial/Industrial/Port Areas/Near Warehouses/Godowns where frequent loading and unloading of truck/trailers are common, with slow to fast moving vehicular traffic of the types having wheel load up to 115 KN irrespective of the location of the Manhole chambers.
